Wave Spring Mechanical Seal

Wave Spring Mechanical Seal Manufacturer in Gujarat, India

At Leak Pack, We are Manufacturer and Exporter of Wave Spring Unbalanced / Balanced Mechanical Seals for pumps and compressors in Gujarat, India. Our mechanical seals are equivalent and replaceable with Indian and Global brands like Burgmann, Flowserve, Sealol, Dura Metallic, AES Seals, Leak Proof, Hi-Fab, John Crane, Chesterton, Flex-a-Seal, Vulcan, Roplan, Roten, Uniten, etc.

Premium Quality Wave Spring Mechanical Seal

We are Manufacturer and Supplier Premium Quality Wave Spring Mechanical Seals at cost-effective prices through experienced staff and certified raw materials. We have tested our wave spring mechanical seals from -40°C to 220°C to ensure they work well.

We manufacture our various types of mechanical seals under ISO standards keeping in mind the actual applications requirements, which fulfill the needs of various industries.

One of the Top Mechanical Seals Manufacture in Gujarat, India

We are one of the Top Manufacturers and Exporters of Wave Spring Mechanical Seals for domestic and industrial pumps like Johnson Pumps, Kirloskar Pumps, Sulzer Pumps, KSB Pumps, Flowserve Pumps, WPIL Pumps, Flowmore Pumps, Sintech Pumps, Kishore Pumps, Ebara Pumps, Shakti Pumps, CRI Pumps, Akay Pumps, Alfa Laval Pumps, Grundfos Pumps, Fristam Pumps, SPX FLOW Pumps, ITT Goulds Pumps, Xylem Pumps, Weir Group Pumps, Willow Pumps etc. We test the quality and performance of all the mechanical seals and deliver them to the customers, which prove our suitability in the country and the world for all types of industries.

LPHJ92

Wave Spring Balanced Mechanical Seals

Features

  • Single seal
  • Balanced
  • For plain shafts
  • Wave spring retainer
  • Independent of direction of rotation

Operating Range

  • Shaft diameter: 19mm to 100mm (0.75″ to 3.94″)
  • Pressure: 25 bar (362 PSI)
  • Sliding velocity: 20 m/s (66ft/s)
  • Temperature: –50 °C to +220 °C (–58 °F to +428 °F)

Materials

  • Seal Faces: Carbon resin, Carbon antimony, Silicon carbide
  • Secondary Seals: FKM, EPDM, NBR, FFKM, Aflas
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Mining industries
  • Pulp & paper industries
  • Pharmaceutical industries
  • Raw sludge, sewage slurries pumps
  • Food, dairy and beverage industries

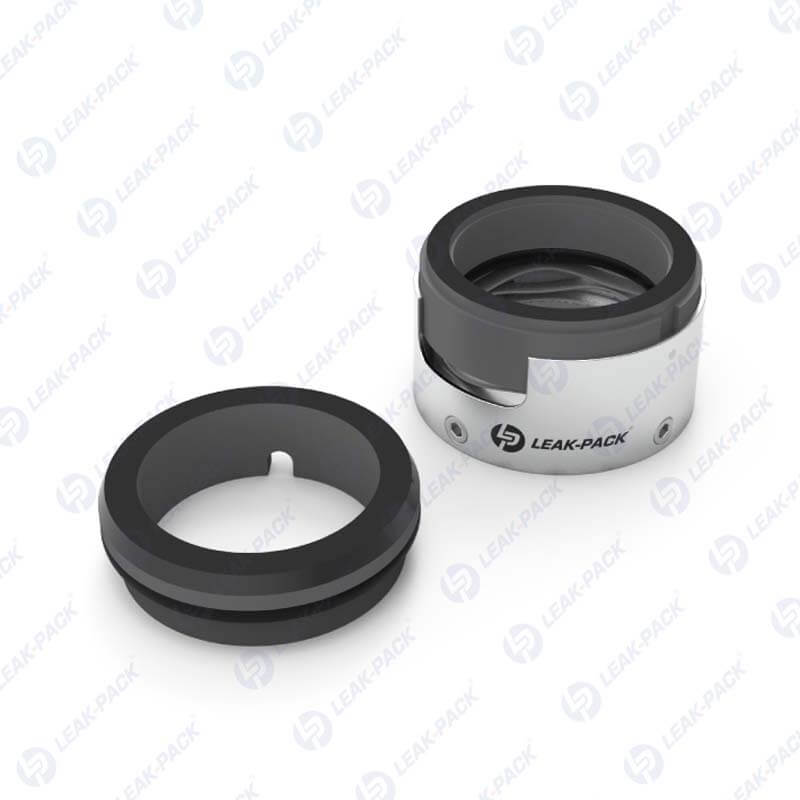

LPM7N

Wave Spring Unbalanced Mechanical Seals

Features

  • Single seal
  • Unbalanced
  • For plain shafts
  • Wave spring retainer
  • Independent of direction of rotation

Operating Range

  • Shaft diameter: 14mm to 100mm (0.55″ to 3.94″)
  • Pressure: 25 bar (362 PSI)
  • Sliding velocity: 20 m/s (66ft/s)
  • Temperature: –40 °C to +220 °C (–40 °F to +428 °F)

Materials

  • Seal Faces: Carbon resin, Carbon antimony, Silicon carbide, Cast CrMo-Steel, Ceramic (99.5%)
  • Secondary Seals: FKM, EPDM, NBR, PTFE, FFKM, Aflas
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Multistage pumps
  • Vertical screw pumps
  • Pulp & paper industries
  • Low solids content media
  • Chemical process industries
  • Water / Sewage water pumps

LPH7N

Wave Spring Balanced Mechanical Seals

Features

  • Single seal
  • Balanced
  • For stepped shafts
  • Wave spring retainer
  • Independent of direction of rotation

Operating Range

  • Shaft diameter: 14mm to 100mm (0.55″ to 3.94″)
  • Pressure: 50 bar (725 PSI)
  • Sliding velocity: 20 m/s (66ft/s)
  • Temperature: –40 °C to +220 °C (–40 °F to +428 °F)

Materials

  • Seal Faces: Carbon resin, Carbon antimony, Silicon carbide, Cast CrMo-Steel, Ceramic (99.5%)
  • Secondary Seals: FKM, EPDM, NBR, PTFE, FFKM, Aflas
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Boiler feed pumps
  • Pulp & paper industries
  • Chemical process industries
  • Power generation industries
  • Food and beverage industries
  • Light hydrocarbons industries
  • Water / Sewage water pumps

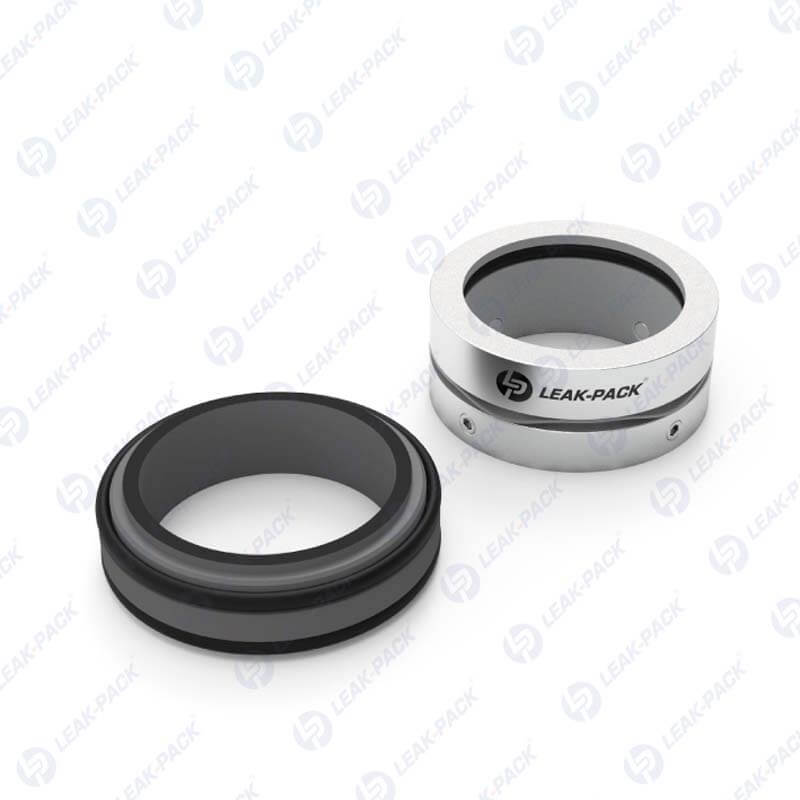

LPW01

Wave Spring Balanced Mechanical Seals

Features

  • Single seal
  • Balanced
  • For plain shafts
  • Wave spring compact retainer
  • Independent of direction of rotation

Operating Range

  • Shaft diameter: 15.8mm to 75mm (0.62″ to 2.95″)
  • Pressure: 10 bar (145 PSI)
  • Sliding velocity: 18 m/s (59ft/s)
  • Temperature: –40 °C to +200 °C (–40 °F to +392 °F)

Materials

  • Seal Faces: Carbon resin, Carbon antimony, Silicon carbide, Tungsten Carbide, Cast CrMo-Steel
  • Secondary Seals: FKM, EPDM, NBR, Aflas
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Clean water
  • Sewage water pumps
  • Oil and other moderately corrosive fluids
