Conical Spring Mechanical Seal Manufacturer in Gujarat, India

Leak Pack is one of the Best Manufacturers, Suppliers and Exporters of Conical Mechanical Seals, Sealing Components, Seal Support Systems and Rotary Unions in Gujarat, India. We offer conical spring design Unbalanced / Balanced Mechanical Seals for various industries.

Best-rated Conical Spring Mechanical Seal

We are manufacturer High Quality Conical Spring Mechanical Seals through high quality raw materials and supply them to the market on time at reasonable prices. It works well as per the needs of industries.

These seals are used in major industries such as light chemical industry, food processing plant, petroleum refineries, pulp and paper industry; hydrocarbons process industries, dirty media & high viscous media.

One of the Best Mechanical Seal Suppliers in Gujarat, India

We Manufacture, Supply and Export High Quality Mechanical Seals for Domestic and Industrial Pumps in India and across the globe such as Johnson Pumps, Kirloskar Pumps, Sulzer Pumps, KSB Pumps, Flowserve Pumps, WPIL Pumps, Flowmore Pumps, Sintech Pumps, Kishore Pumps, Ebara Pumps, Shakti Pumps, CRI Pumps, Akay Pumps, Alfa Laval Pumps, Grundfos Pumps, Fristam Pumps, SPX FLOW Pumps, ITT Goulds Pumps, Xylem Pumps, Weir Group Pumps, Willow Pumps etc. you can contact us anytime to know more about our mechanical seals products.

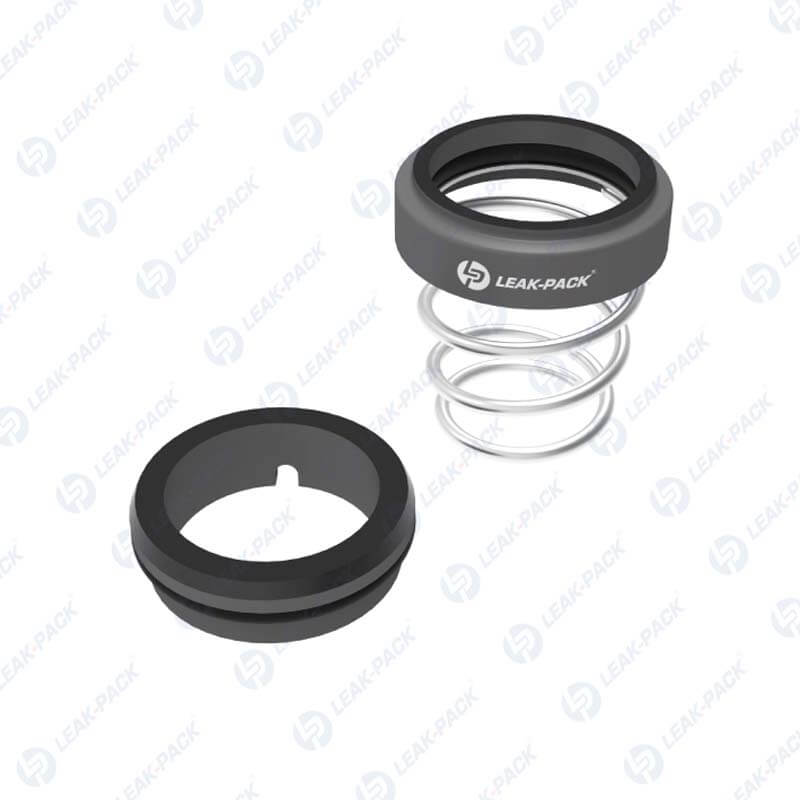

LPM2N

Conical Spring Unbalanced Mechanical Seals

Enquiry Now

­­­­­­­­­­­­­­­­­Features

  • Single seal
  • Unbalanced
  • For plain shafts
  • Conical spring rotating
  • Dependent on direction of rotation

Operating Range

  • Shaft diameter: 6mm to 38mm (0.23″ to 1.5″)
  • Pressure: 10 bar (145 PSI)
  • Sliding velocity: 15 m/s (50 ft/s)
  • Temperature: –20 °C to +140 °C (–4 °F to +284 °F)

Materials

  • Seal Faces: Carbon resin, Silicon carbide, Cast CrMo-Steel, Ceramic (99.5%)
  • Secondary Seals: FKM, EPDM, Silicon, NBR
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Water &waste water industries
  • Building services industries

LPM37

Conical Spring Unbalanced Mechanical Seals

Enquiry Now

Features

  • Single seal
  • Unbalanced
  • For plain shafts
  • Conical spring rotating
  • Dependent on direction of rotation

Operating Range

  • Shaft diameter: 16mm to 80mm (0.63″ to 3.15″)
  • Pressure: 10 bar (145 PSI)
  • Sliding velocity: 13 m/s (33ft/s)
  • Temperature: –20 °C to +180 °C (–4 °F to +355 °F)

Materials

  • Seal Faces: Carbon resin, Carbon antimony, Silicon carbide, Tungsten carbide, Cast CrMo-Steel, Ceramic (99.5%)
  • Secondary Seals: FKM, EPDM, Silicon, Aflas,  PTFE, NBR
  • Hardware & Spring: SS 304, SS 316, Hast-C,   Alloy-20 and other grades

Application

  • Water pumps
  • Chemical process industries
  • Construction & mining industries
  • Circulation pumps for central heating
  • Pulp, sugar, food and beverage process industries

LPH12N

Conical Spring Balanced Mechanical Seals

Enquiry Now

Features

  •  Single seal
  • Balanced
  • For stepped shafts
  • Dependent on direction of rotation
  • Torque transmission via conical spring

Operating Range

  • Shaft diameter: 10mm to 80mm (0.39″ to 3.15″)
  • Pressure: 25 bar (363 PSI)
  • Sliding velocity: 15 m/s (50ft/s)
  • Temperature: –50 °C to +220 °C (–58 °F to +430 °F)

Materials

  • Seal Faces: Carbon resin, Carbon antimony, Silicon carbide, Tungsten carbide, Cast CrMo-Steel, Ceramic (99.5%)
  • Secondary Seals: FKM, EPDM, Silicon, Aflas, PTFE, NBR
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

 Application

  • Water pumps
  • Chemical process industries
  • Construction & mining industries
  • Circulation pumps for central heating
  • Pulp, sugar, food and beverage process industries

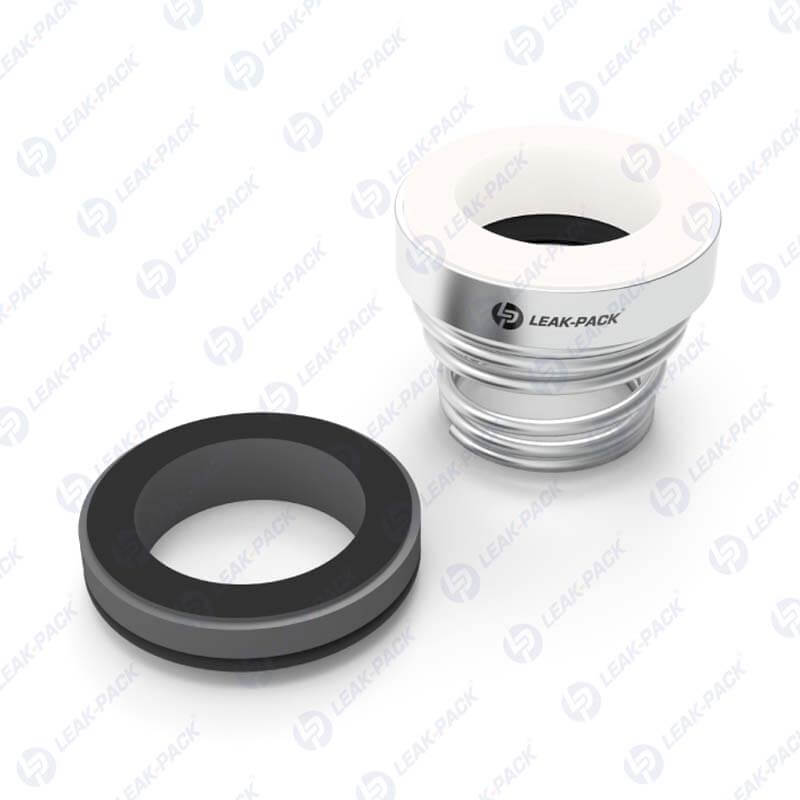

LPBT-FN

Conical Spring Unbalanced Mechanical Seals

Enquiry Now

Features

  • Single seal
  • Unbalanced
  • Conical spring
  • For plain shafts
  • Dependent on direction of rotation

Operating Range

  • Shaft diameter: 10mm to 40mm (0.39″ to 1.57″)
  • Pressure: 12 bar (174 PSI)
  • Sliding velocity: 15 m/s (50ft/s)
  • Temperature: –35 °C to +180 °C (–31 °F to +355 °F)

Materials

  • Seal Faces: Carbon resin, Carbon antimony, Silicon carbide, Tungsten carbide, Ceramic (99.5%)
  • Secondary Seals: FKM, EPDM, NBR
  • Hardware & Spring: SS 304, SS 316 and other grades

Application

  • Construction & mining industries
  • Household appliances
  • Building services industries
×
