Agitators, Mixers, Reactors & Blenders Mechanical Seals

Agitator / Mixers / Reactors / Blenders Mechanical Seal Manufacturer in Chhapi, Gujarat, India

At Leak Pack, We are Manufacturers, Suppliers and Exporters of Single and Double Mechanical Seals for Agitators, Reactors, Mixers and Rotating Equipment in Gujarat, India. You can replace our mechanical seals with Burgmann, Flowserve, Sealol, Dura Metallic, AES Seals, Leak Proof, Hi-Fab, John Crane, Chesterton, Flex-a-Seal, Vulcan, Roplan, Roten, Uniten, etc.

Higher Quality Agitators, Reactors, Mixers & Blenders Mechanical Seals

We are Manufacture and Export of High Quality Single and Double Agitator Mechanical Seals as per the demands of our customers; our all products are made by skilled staff, modern design and best materials. These types of agitator seals can be assembled and disassembled in a short time and can be used easily. We supply various types of agitator mechanical seals after testing them in temperatures ranging from -40°C to 270°C.

Our Agitators, Reactors, Mixers & Blenders Mechanical Seals are used in the chemical industry, food and beverage industry, pharmaceutical industry, , petrochemical industry, oil and gas industry, light hydrocarbons industry and many more industries.

Economical Mechanical Seals Products

Our company guarantees that all types of mechanical seal products will be supplied at economical prices and with timely delivery.

One of the High Quality Mechanical Seal Suppliers in Gujarat, India

We are one of the High Quality Agitators, Mixers, Reactor Mechanical Seals Manufacturers and Exporters in Gujarat, India and Worldwide. You can contact us for more information about our agitator mechanical seals products.

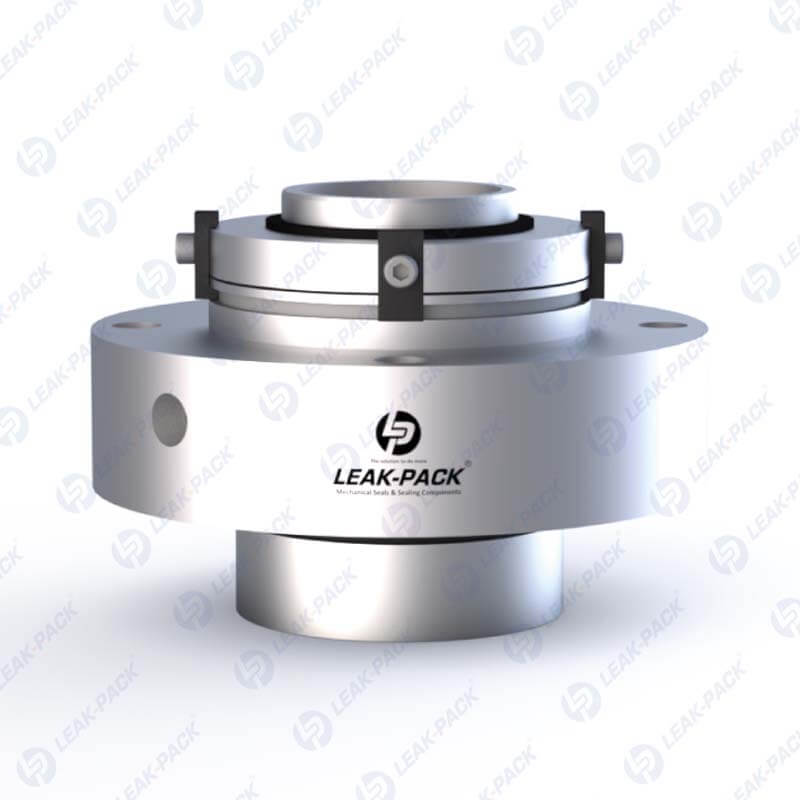

LPH003

Mechanical Seals For Homogenizer, Reaction Kettles & Roto Cone Vacuum Dryers

Features

  • Double seal
  • Balanced
  • Cartridge unit
  • Independent of direction of rotation

Operating Range

  • Shaft diameter: 19mm to 100mm (0.75″ to 3.94″)
  • Sliding velocity: 25 m/s (82ft/s)
  • Pressure / Vacuum: 10 bar (145 PSI)
  • Temperature: –30 °C to +200 °C (–22 °F to +392 °F)

Materials

  • Seal Faces: Carbon resin, Silicon carbide, Tungsten carbide
  • Secondary Seals: FKM, FFKM, NBR,EPDM, PTFE
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Reaction kettles
  • Homogenizer pumps
  • Horizontal entry reactors
  • Roto cone vacuum dryers
  • Pharmaceutical process equipment

LPB004 / LPB004B

Mechanical Seals For Bottom Entry Drives Agitators, Mixers, Reactors & Blenders

Features

  • Double seal
  • Balanced
  • Cartridge unit
  • For bottom entry drives
  • Bearing arrangement (LPB004B)
  • Independent of direction of rotation

Operating Range

  • Shaft diameter: 19mm to 140mm (0.75″ to 5.51″)
  • Sliding velocity: 2 m/s (6ft/s)
  • Pressure / Vacuum: Full vacuum 10 bar (145 PSI)
  • Temperature: –30 °C to +200 °C (–22 °F to +392 °F)

Materials

  • Seal Faces: Carbon resin, Silicon carbide, Tungsten carbide
  • Secondary Seals: FKM, FFKM, NBR, EPDM, Aflas
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Flooded reactors
  • Kneaders, reactors & mixers
  • Bottom entry agitation equipment
  • Pharmaceutical process equipment

LPS005 / LPS005B

Mechanical Seals For Side Entry Drives Agitators, Mixers, Reactors & Blenders

Features

  • Double seal
  • Balanced
  • Cartridge unit
  • For side entry drives
  • Bearing arrangement (LPS005B)
  • Independent of direction of rotation

Operating Range

  • Shaft diameter: 19mm to 140mm (0.75″ to 5.51″)
  • Sliding velocity: 2 m/s (6ft/s)
  • Pressure / Vacuum: Full vacuum to 10 bar (145 PSI)
  • Temperature: –30 °C to +230 °C (–22 °F to +446 °F)

Materials

  • Seal Faces: Carbon resin, Silicon carbide, Tungsten carbide
  • Secondary Seals: FKM, FFKM, TTV, PTFE
  • Hardware & Spring: SS 304, SS 316

Application

  • Bead mill equipment
  • Special rotating equipment
  • Pharmaceutical process equipment
  • Side and bottom entry agitation equipment

LPDR006 / LPDR006H

Dry Running Mechanical Seals

Features

  • Single seal
  • Balanced
  • Dry running
  • Outboard mounted
  • Heat trap arrangement (LPDR006H)
  • Independent of direction of rotation

Operating Range

  • Shaft diameter: 25mm to 220mm (0.98″ to 8.66″)
  • Sliding velocity: 2 m/s (6ft/s)
  • Pressure / Vacuum: 6 bar (87 PSI)
  • Temperature: –20 °C to +150 °C (–4 °F to +302 °F)

Materials

  • Seal Faces: Carbon resin, Silicon carbide, Ceramic (99.5%)
  • Secondary Seals: FKM, TTV, TCV, FEP, PTFE
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Chemical industry
  • Petrochemical industry
  • Pharmaceutical industry
  • Food and beverage industry
  • Steel vessels, agitators, mixers, reactors

LPAG007 / LPAG017

Agitator Single Mechanical Seals

Features

  • Single seal
  • Cartridge unit
  • Bearing arrangement (Optional)
  • Heat trap arrangement (Optional)
  • Independent of direction of rotation
  • Balanced (LPAG017)
  • Unbalanced (LPAG007)

Operating Range

  • Shaft diameter: 25mm to 220mm (0.98″ to 8.66″)
  • Sliding velocity: 3 m/s (10ft/s)
  • Pressure / Vacuum: Unbalanced 10 bar (145 PSI) Balanced 20 bar (290 PSI)
  • Temperature: –20 °C to +200 °C (–4 °F to +392 °F)

Materials

  • Seal Faces: Carbon resin, Silicon carbide, Ceramic (99.5%), Tungsten carbide
  • Secondary Seals: FKM, FFKM, Aflas, PTFE, GFT, TTV
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Chemical industry
  • Petrochemical industry
  • Pharmaceutical industry
  • Light hydrocarbons industry
  • Steel vessels, agitators, mixers& reactors

LPAG008 / LPAG018

Agitator Double Mechanical Seals

Features

  • Double seal
  • Cartridge unit
  • Bearing arrangement (Optional)
  • Heat trap arrangement (Optional)
  • Independent of direction of rotation
  • Balanced (LPAG018)
  • Unbalanced (LPAG008)

Operating Range

  • Shaft diameter: 25mm to 220mm (0.98″ to 8.66″)
  • Sliding velocity: 3 m/s (10ft/s)
  • Pressure / Vacuum: Unbalanced 10 bar (145 PSI) Balanced 20 bar (290 PSI)
  • Temperature: –20 °C to +240 °C (–4 °F to +464 °F)

Materials

  • Seal Faces: Carbon resin, Silicon carbide, Ceramic (99.5%), Tungsten carbide
  • Secondary Seals: FKM, FFKM, Aflas, PTFE, GFT, TTV
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Chemical industry
  • Petrochemical industry
  • Pharmaceutical industry
  • Light hydrocarbons industry
  • Steel vessels, agitators, mixers& reactors

LPAG019

Agitator Double Mechanical Seals (ANFD)

Features

  • Double seal
  • Balanced
  • Cartridge unit
  • Bearing arrangement
  • Heat trap arrangement (Optional)
  • Independent of direction of rotation

Operating Range

  • Shaft diameter: 30mmto 220mm (1.18″ to 8.66″)
  • Sliding velocity: 5 m/s (16ft/s)
  • Pressure / Vacuum: 6 bar (87 PSI)
  • Temperature: –20 °C to +200 °C (–4 °F to +392 °F)

Materials

  • Seal Faces: Carbon resin, Silicon carbide, Tungsten carbide
  • Secondary seals: FKM, FFKM, Aflas, PTFE, GFT, TTV
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grade

Application

  • Rotary vacuum paddle dryers
  • Agitated nutsche filter & dryers
  • Horizontal reactors with expanding shafts

LPSM033 / LPSM033B

Single Mechanical Seals For Agitators, Mixers, Reactors & Blenders

Features

  • Single seal
  • Balanced
  • Dry running
  • Cartridge unit
  • For top entry drives
  • Bearing arrangement (LPSM033B)
  • Heat trap arrangement (Optional)
  • Independent of direction of rotation

Operating Range

  • Shaft diameter: 40mm to 200mm (1.57″ to 7.87″)
  • Sliding velocity: 2 m/s (6ft/s)
  • Pressure / Vacuum: 6 bar (87 PSI)
  • Temperature: –20 °C to +230 °C (–4 °F to +446 °F)

Materials

  • Seal Faces: Carbon resin, Silicon carbide
  • Secondary Seals: FKM, FFKM, Aflas, PTFE, GFT, TTV
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Petrochemical industry
  • Pharmaceutical industry
  • Food and beverage industry
  • Light hydrocarbons industry
  • Steel vessels, agitators, mixers & reactors

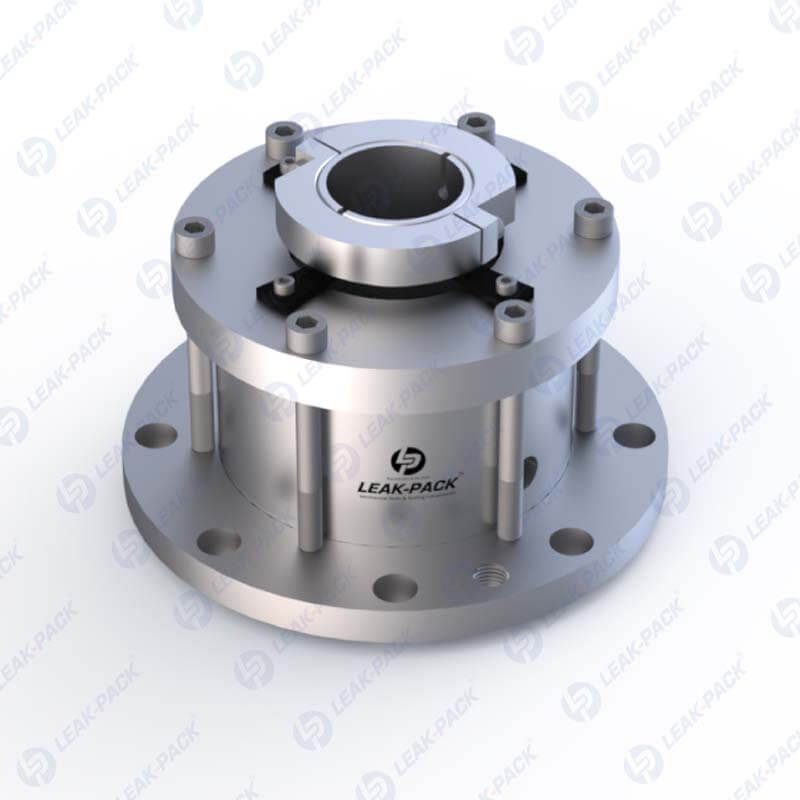

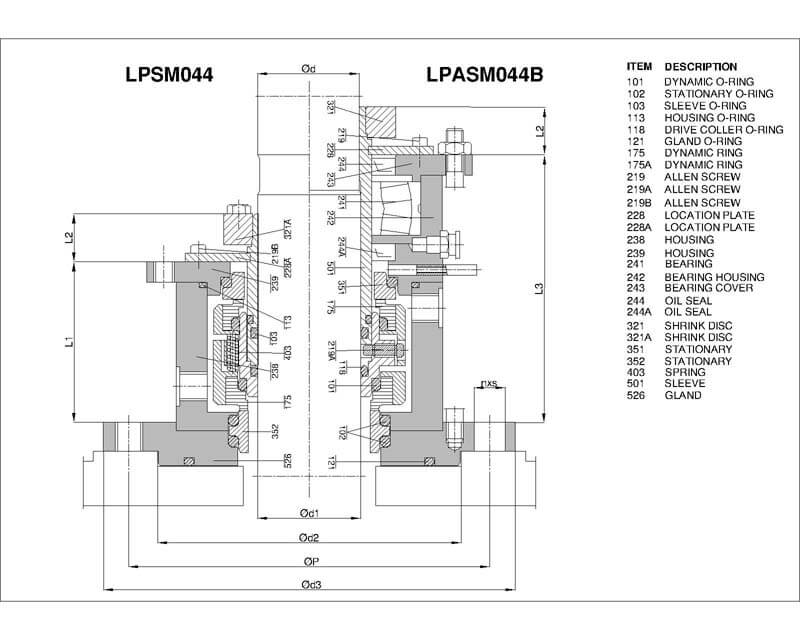

LPSM044 / LPSM044B

Double Mechanical Seals For Agitators, Mixers, Reactors & Blenders

Features

  • Double seal
  • Balanced
  • Dry running
  • Cartridge unit
  • For top entry drives
  • Bearing arrangement (LPSM044B)
  • Heat trap arrangement (Optional)
  • Independent of direction of rotation

Operating Range

  • Shaft diameter: 40mm to 200mm (1.57″ to 7.87″)
  • Sliding velocity: 2 m/s (6ft/s)
  • Pressure / Vacuum: 6 bar (87 PSI)
  • Temperature: –20 °C to +270 °C (–4 °F to +518 °F)

Materials

  • Seal Faces: Carbon resin, Silicon carbide
  • Secondary Seals: FKM, FFKM, Aflas, PTFE, GFT, TTV
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Chemical industry
  • Petrochemical industry
  • Pharmaceutical industry
  • Food and beverage industry
  • Steel vessels, agitators, mixers & reactors

LPSM055 / LPSM055B

Double Mechanical Seals For Glass Lined Agitators, Mixers, Reactors & Blenders

Features

  • Double seal
  • Balanced
  • Dry running
  • Cartridge unit
  • For top entry drives
  • For glass lined vessels
  • Bearing arrangement (SM700)
  • Heat trap arrangement (Optional)
  • Independent of direction of rotation

Operating Range

  • Shaft diameter: 40mm to 200mm (1.57″ to 7.87″)
  • Sliding velocity: 2 m/s (6ft/s)
  • Pressure / Vacuum: 6 bar (87 PSI)
  • Temperature: –20 °C to +270 °C (–4 °F to +518 °F)

Materials

  • Seal Faces: Carbon resin, Silicon carbide
  • Secondary Seals: FKM, FFKM, Aflas, PTFE, GFT, TTV
  • Hardware & Spring: SS 304, SS 316, Hast-C, Alloy-20 and other grades

Application

  • Chemical industry
  • Petrochemical industry
  • Pharmaceutical industry
  • Food and beverage industry
  • Glass lined vessels, agitators, mixers & reactors
